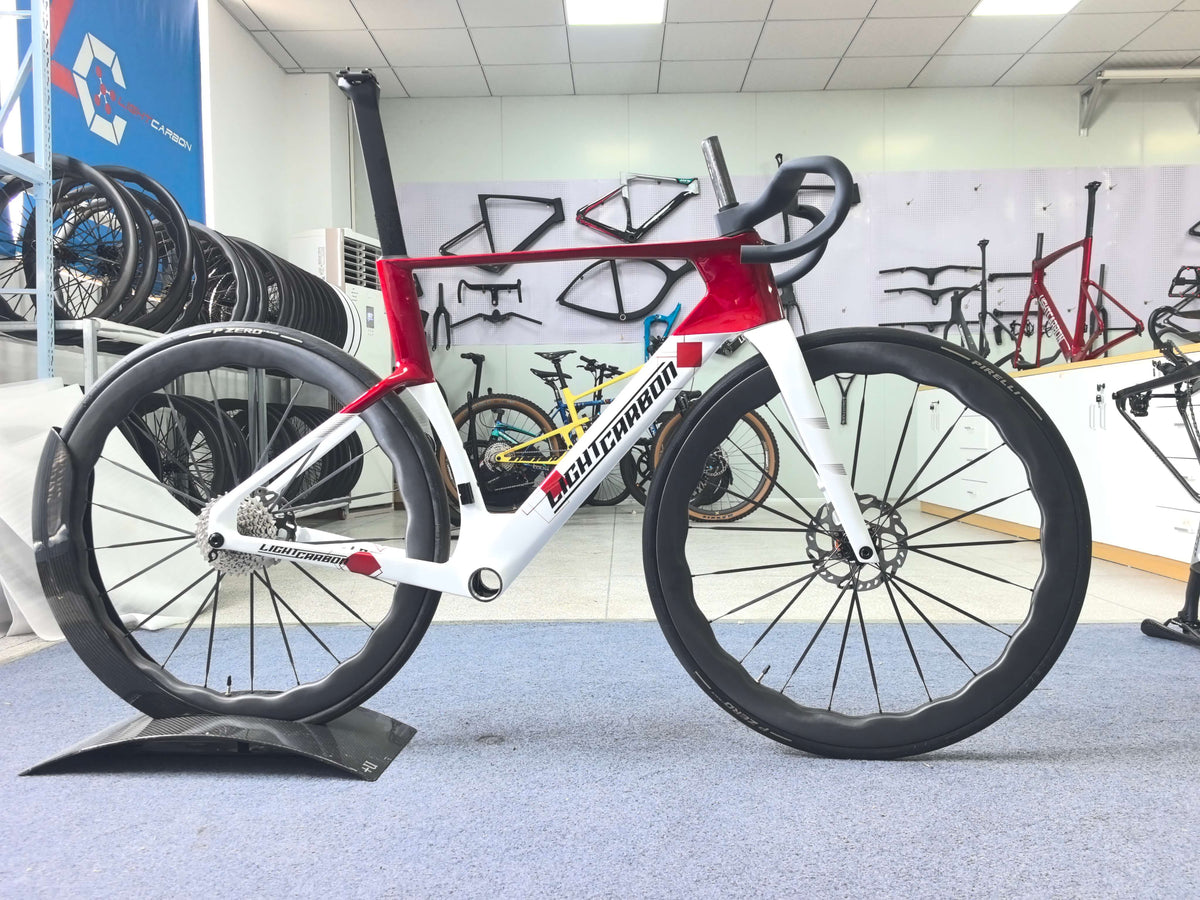

LCR020-D Aero Road Racing Frameset + Integrated Bar/Stem
Taxes and shipping calculated at checkout.
-
US warranty & supportClaims and questions handled here in the US.
-
Fast US shippingShipping options and costs shown at checkout.
-
Secure checkoutEncrypted payments powered by Shopify.
Coming soon to 168Velo for $1,299.99. The LightCarbon LCR020-D is LightCarbon's 2027 "Super Aero Race" disc-brake road frameset, with a one-piece integrated bar and stem. It's a full race frame: T800, T1100 and M40J carbon, a threaded T47 bottom bracket, a UDH derailleur hanger, room for 35 mm tires, and a claimed 1,100 g frame weight in a size 54. Send a request to get on the list for the first batch.
I race on a LightCarbon frame. I went from Cat 4 to Cat 2 on one and I'm about 15,000 miles in. The LCR020-D is the frame I'd point a racer to first.
Why the LCR020-D
- Race-bike speed for about a quarter of the price. An S-Works Tarmac SL8 frameset runs $5,700. A Scott Foil RC Pro HMX frameset runs $3,499. The LCR020-D is $1,299.99 with an integrated cockpit included (frameset MSRPs as of October 2026).
- Modern standards. Threaded T47 bottom bracket instead of a creaky press-fit. UDH hanger, so it works with SRAM's Transmission-style derailleurs. 12 mm thru-axles. Flat-mount 160 mm rotors front and rear.
- Room for real tires. Up to 700x35C, so you can run fast 28s or 30s with room for mud and grime.
- Clean front end. Fully integrated bar and stem with internal routing, in a range of widths and lengths.
- Built and tested by LightCarbon. Their own factories, ISO 4210 testing, and a 2-year warranty. Through us you get an extra year on top.
LCR020-D specs
| Category | Aero road race, disc brake |
| Model year | 2027 |
| Carbon | Toray T800, T1100 and M40J |
| Frame weight | 1,100 g, size 54, UD matte (±4%, LightCarbon claim) |
| Sizes | 49, 52, 54, 56, 58 |
| Max tire | 700x35C |
| Bottom bracket | Threaded T47 x P1.0, 85.5 mm |
| Head tube | Integrated, 52 mm upper / 52 mm lower |
| Seatpost | Frame-specific aero shape with its own clamp |
| Axles | 12 x 100 mm front, 12 x 142 mm rear thru-axle |
| Brakes | Flat mount, 160 mm rotors front and rear |
| Derailleur hanger | UDH |
| Integrated bar widths | 360, 380, 400, 420 mm |
| Stem lengths | 80, 90, 100, 110, 120, 130 mm |
| Testing | ISO 4210 |
LCR020-D geometry

Full size chart: see the LightCarbon frame size chart for every measurement, including standover height, plus help picking your size.
From LightCarbon's 2026–2027 catalog. All sizes share 410 mm chainstays, 70 mm BB drop, 45 mm fork rake and a 370 mm fork length.
| Size | 49 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|
| Stack | 511 | 527 | 544 | 568 | 589 |
| Reach | 375 | 380 | 385 | 395 | 400 |
| Effective top tube | 530 | 540 | 545 | 560 | 580 |
| Head tube | 108 | 121 | 141 | 161 | 181 |
| Head tube angle | 71° | 72° | 72.5° | 73° | 73.3° |
| Seat tube angle | 74.5° | 74° | 73.6° | 73.3° | 73° |
| Wheelbase | 993.7 | 990.7 | 986 | 999 | 1008.6 |
All measurements in mm. Not sure which size? Read our LightCarbon sizing guide, or send me the stack and reach of a bike that fits you and I'll help you pick.
What's in the box
The frame, the fork, the one-piece integrated bar and stem, and the frame-specific seatpost and clamp. LightCarbon framesets normally also include headset bearings, spacers and thru-axles. I'll confirm the exact box contents for our batch before your order ships, so you know exactly what else to buy. Our frameset build guide walks through the rest.
Warranty, returns and crash replacement
- 2-year LightCarbon warranty on frame and fork, plus 1 extra year from 168Velo: 3 years total.
- 25% crash replacement discount.
- 30-day returns on unbuilt, unused framesets.
- Claims handled in Ogden, Utah. You text me. I deal with the factory.
Details are on our warranty page.
Why buy it from 168Velo instead of direct
Bike frames from China now carry about 41% in U.S. tariffs, and the duty-free exemption for small packages is gone. Our price already includes importing, so there's no duty bill at your door, and it ships from Utah instead of from Xiamen. Here's the math: what a Chinese carbon frame really costs in 2026.
Read more
- LCR020-D deep dive: specs, geometry and who it's for
- LCR020-D vs. S-Works Tarmac SL8
- Are LightCarbon frames good? My review after 15,000 miles
Want one from the first batch? Send a request with your size, or text (801) 821-6846.
